GX-DJ-331

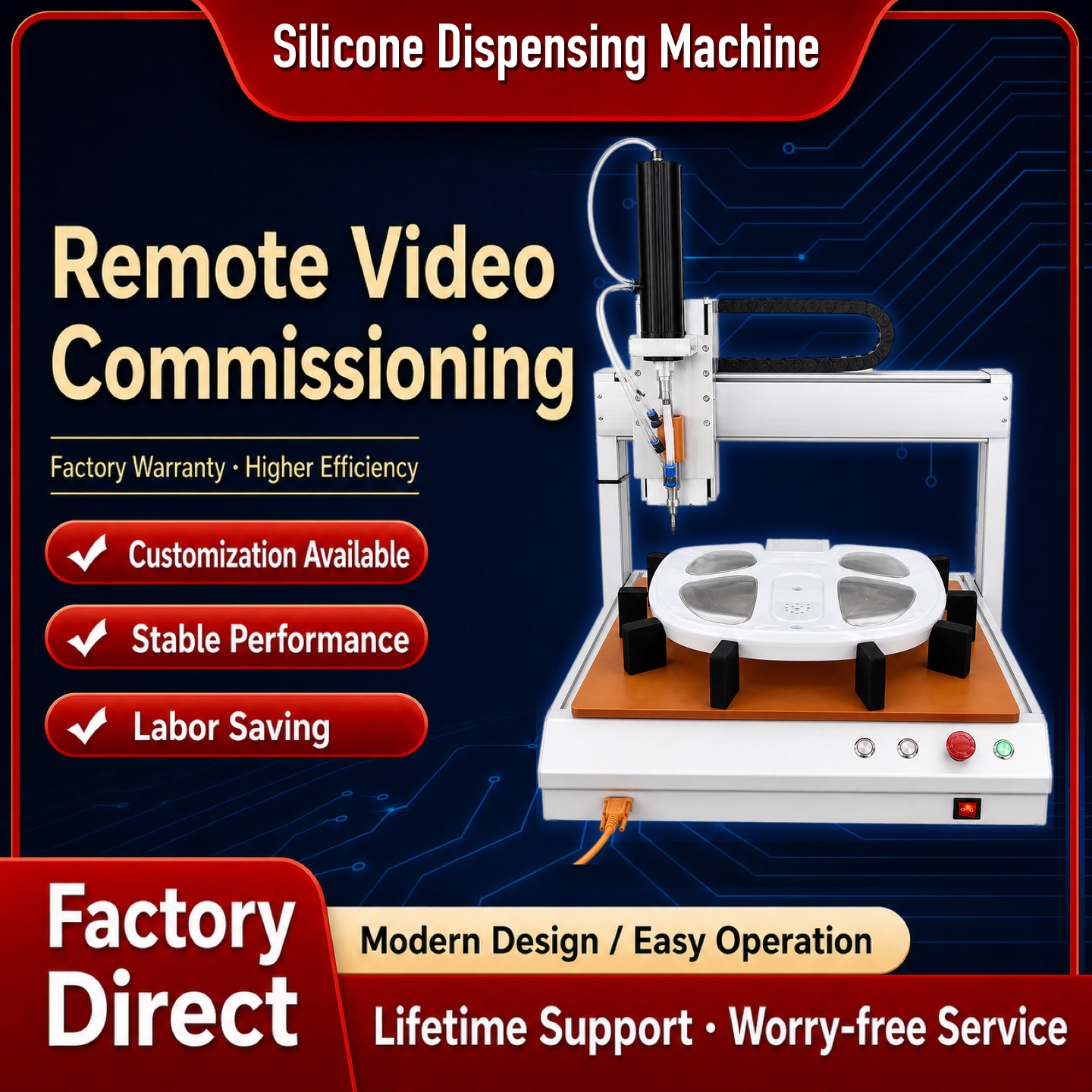

Syringe Dispensing Machine
Compact programmable platform for repeatable dots, beads, arcs and FIPG paths.
The GX-DJ-331 automates precision fluid application for bonding, sealing, filling and gasketing. Its teach-pendant workflow supports dots, lines, arcs, circles and continuous paths for adhesives, silicones, sealants, UV materials, greases and other assembly fluids.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-DJ-331 automates precision fluid application for bonding, sealing, filling and gasketing. Its teach-pendant workflow supports dots, lines, arcs, circles and continuous paths for adhesives, silicones, sealants, UV materials, greases and other assembly fluids.
Typical Applications
FIPGBondingSealingGasketingPotting small parts
Key Specifications
- Travel range
- X300 × Y300 × Z100 mm
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 520 × 600 × 650 mm
- Weight
- 45 kg
Media
Machine and process footage
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
