GX-HX-551R

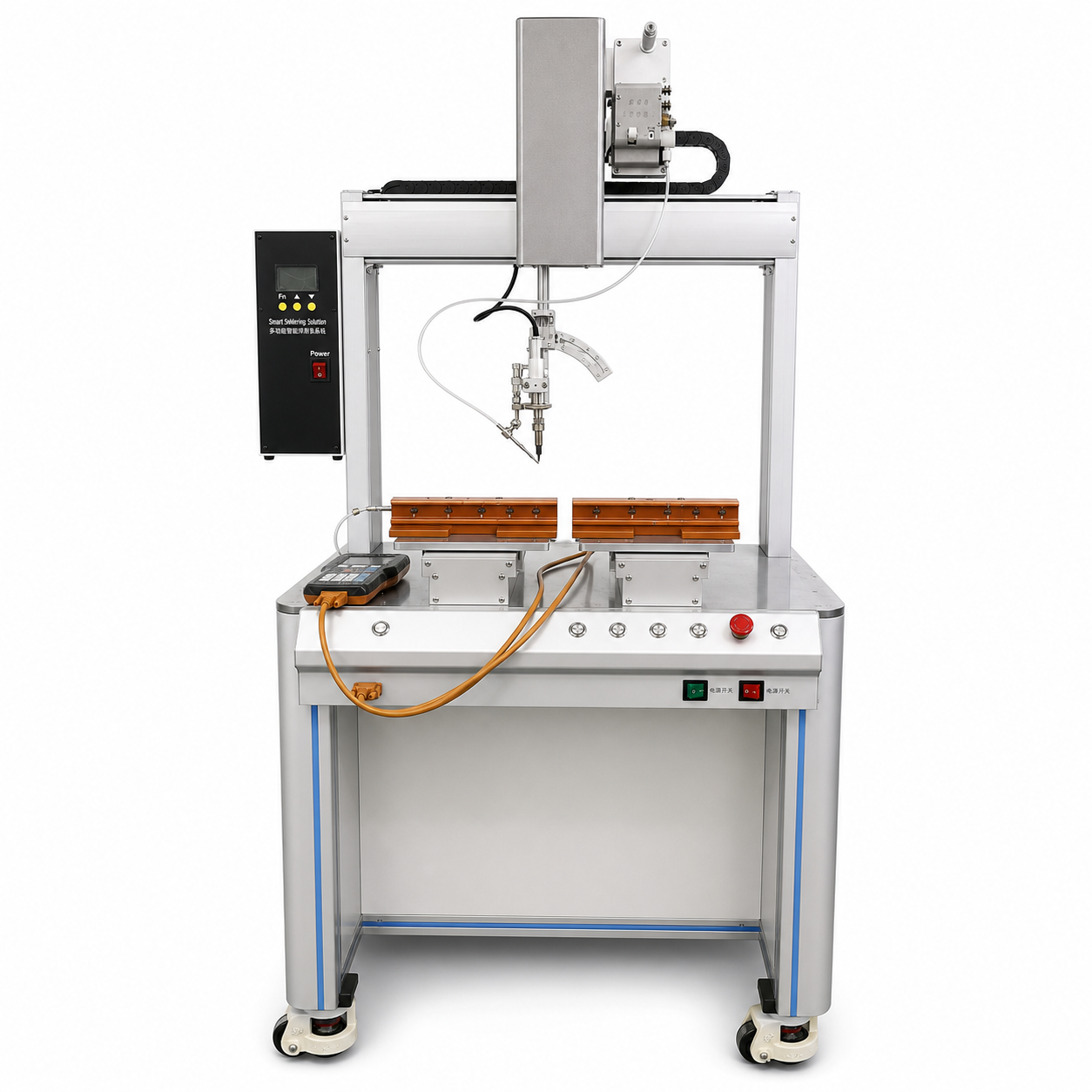

Floor-Standing Soldering Machine
Floor-standing automated soldering platform with dual work fixtures.
The GX-HX-551R is a floor-standing robotic soldering system designed for larger fixtures and ergonomic production loading. Programmable motion, dual work positions and automatic solder-wire feeding support repeatable assembly work.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-HX-551R is a floor-standing robotic soldering system designed for larger fixtures and ergonomic production loading. Programmable motion, dual work positions and automatic solder-wire feeding support repeatable assembly work.
Typical Applications
Cable assembliesPCB assembliesLarge fixturesProduction soldering
Key Specifications
- Travel range
- X500 × Y500 × Z100 mm
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 720 × 780 × 850 mm
- Weight
- 200 kg
Media
Machine and process footage
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
sales@gxatec.comRelated Equipment
More in this category

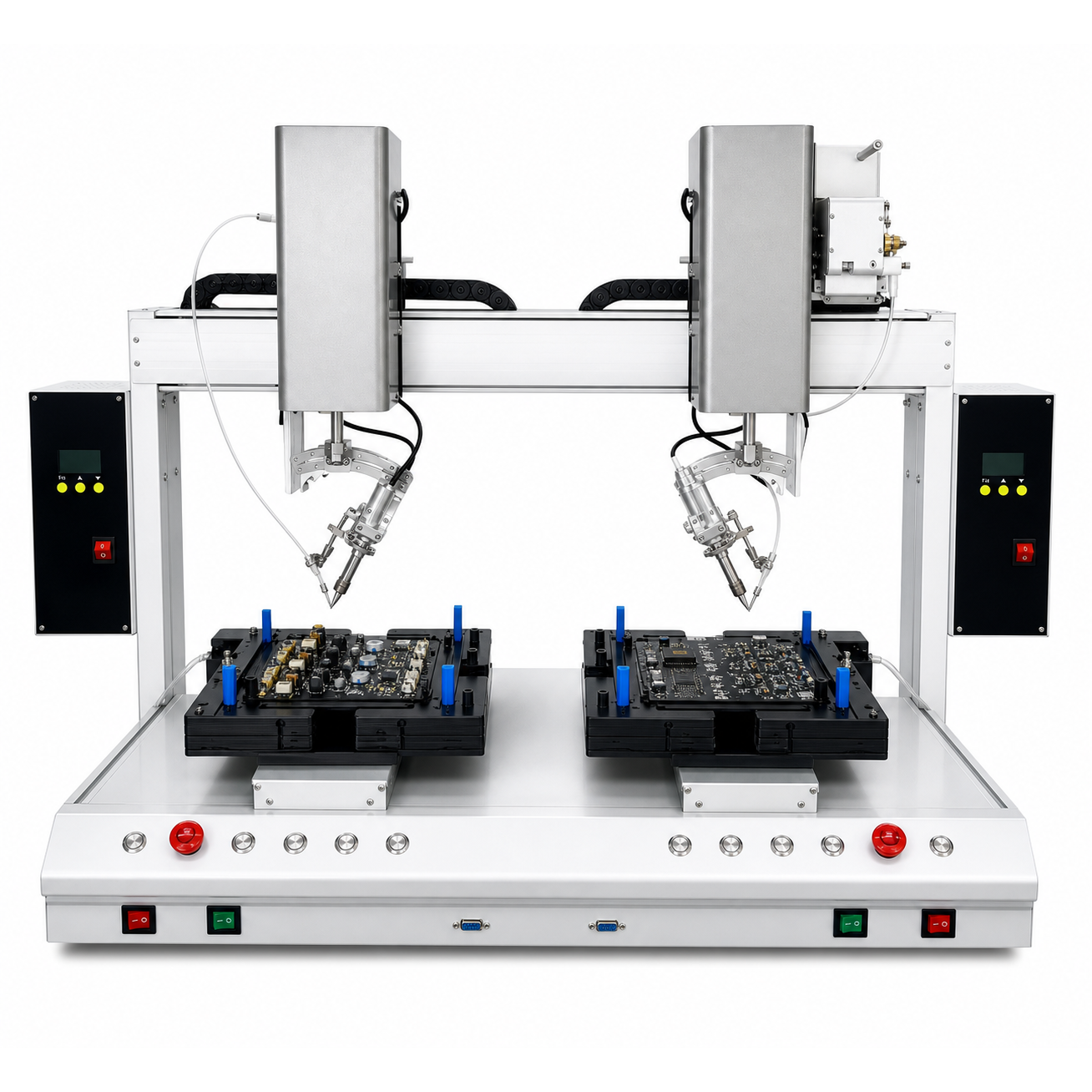

Dual-Head Soldering Machine
Dual soldering heads and workstations for parallel automated soldering.
View equipment

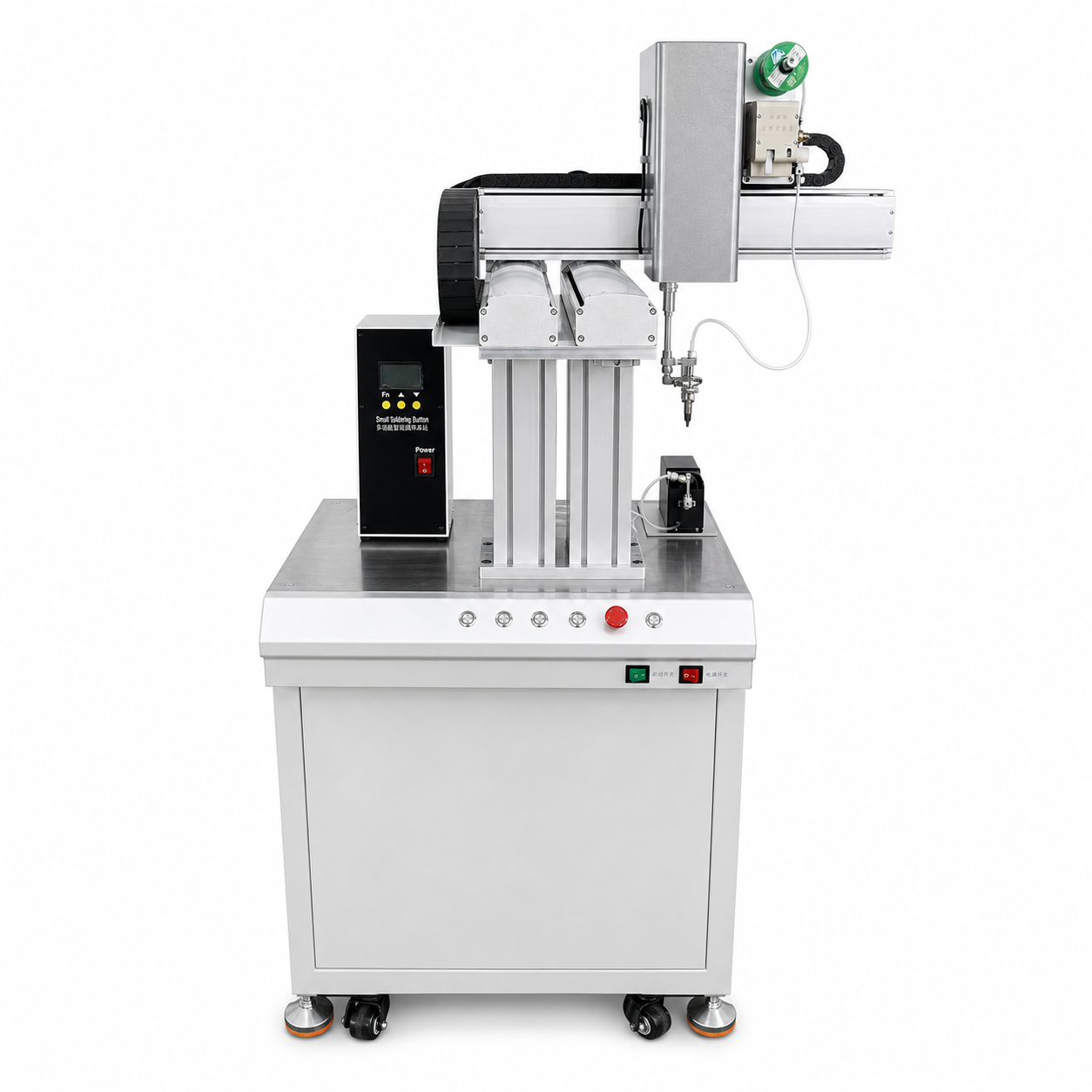

Cantilever Soldering Machine
