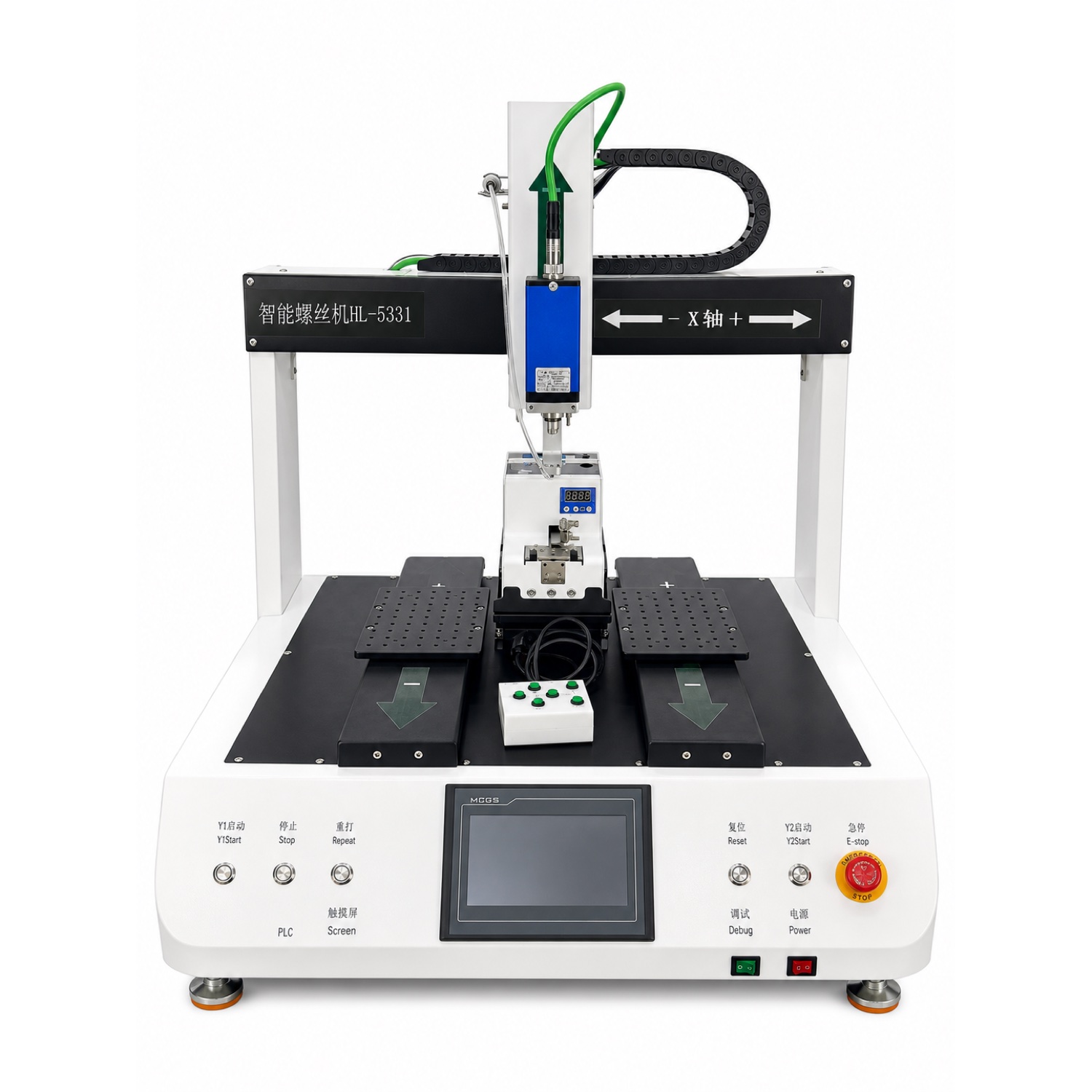

Standard Screwdriving Machine
Dual-station desktop platform for automatic screw feeding, positioning and fastening.
View equipment
GX-LS-5331

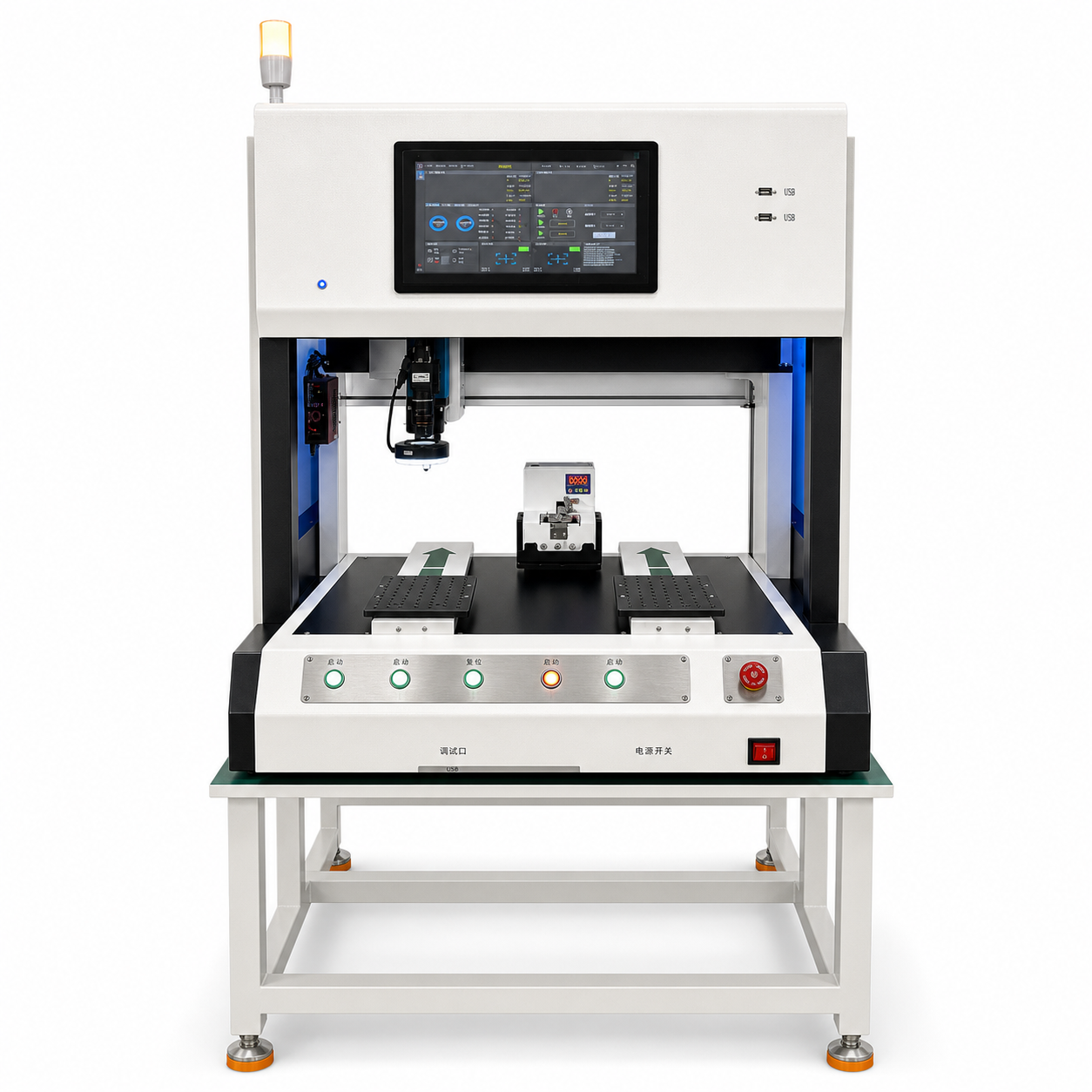

PC Vision Screwdriving Machine
Machine-vision screw location with automatic feeding and fastening for variable-position parts.
The GX-LS-5331 combines vision-guided workpiece location, automatic screw feeding and programmable fastening. It supports applications where screw positions or fixtures require visual correction before tightening.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-LS-5331 combines vision-guided workpiece location, automatic screw feeding and programmable fastening. It supports applications where screw positions or fixtures require visual correction before tightening.
Typical Applications
Electronics assemblyPrecision fasteningMulti-position partsVision-guided assembly
Key Specifications
- Travel range
- X500 × Y1 300 × Y2 300 × Z100 × R360°
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 750 × 600 × 750 mm
- Weight
- 95 kg
Media
Machine and process footage
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
sales@gxatec.comRelated Equipment
More in this category

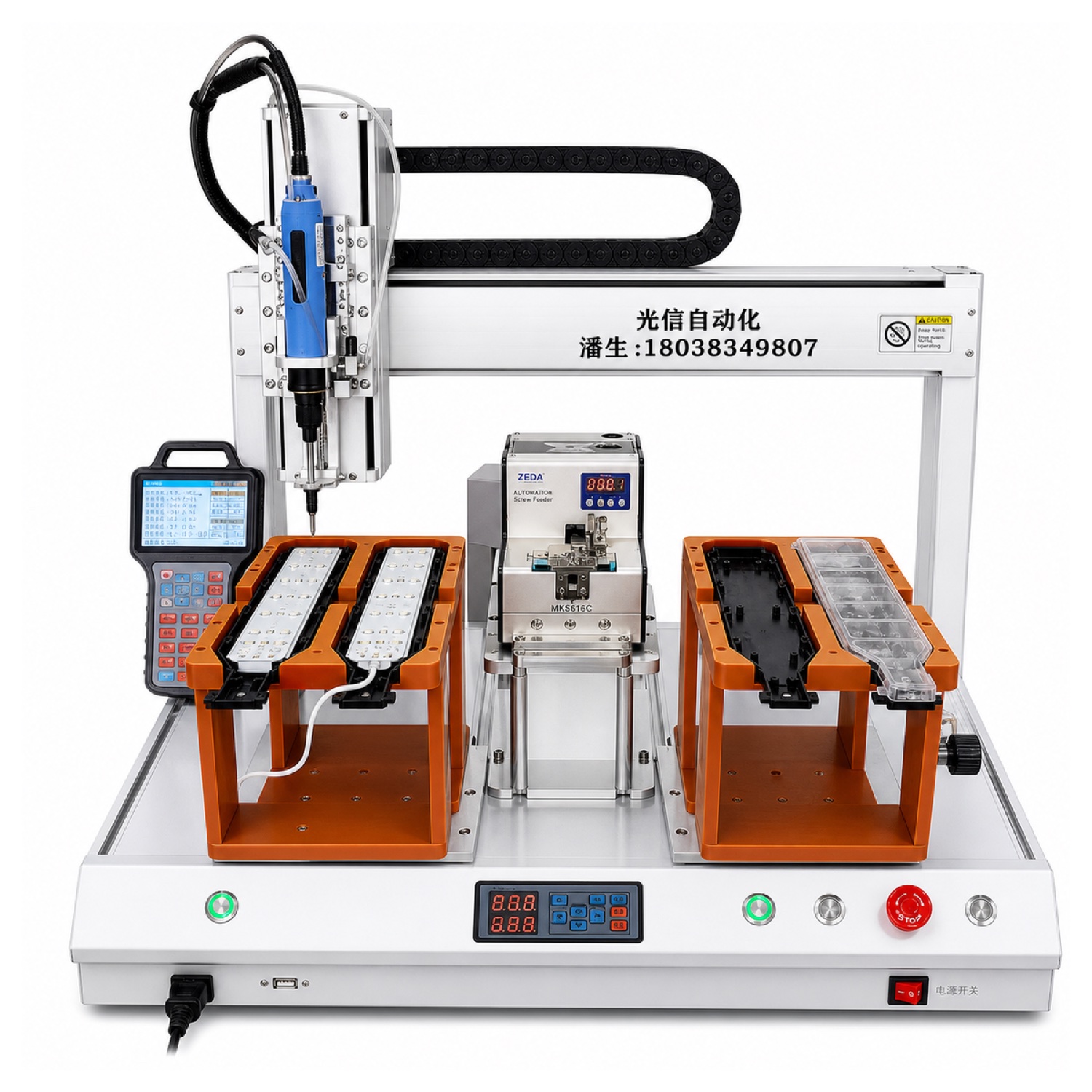

Dual-Station Screwdriving Machine
