Gantry Dispensing Machine

GX-DJ-5331

Gantry Dispensing Machine

Open gantry dispenser with catalogue travel of X500 × Y1 300 × Y2 300 × Z100 mm.

The GX-DJ-5331 is an open gantry dispensing machine. Its catalogue reference configuration is listed below; application-specific tooling and fluid supply should be confirmed for each project.

Request a Quote Email Sales

Factory direct Configurable process Global support

Equipment Details

Designed for repeatable production

The GX-DJ-5331 is an open gantry dispensing machine. Its catalogue reference configuration is listed below; application-specific tooling and fluid supply should be confirmed for each project.

Typical Applications

Large panelsBattery assembliesLarge-part sealingCustom production lines

Key Specifications

Travel range: X500 × Y1 300 × Y2 300 × Z100 mm
Speed: X/Y 0–500 mm/s; Z 0–100 mm/s
Positioning accuracy: ±0.02 mm
Repeatability: ±0.02 mm
Drive system: Stepper motor + timing belt
Control: Handheld programmer
Program files: 999
Air pressure: 0.1–0.6 MP (catalogue notation)
Payload: 10 kg
Power supply: AC 110/220 V, 50/60 Hz
Dimensions: 720 × 600 × 650 mm
Weight: 200 kg

Catalogue reference specifications; final machine configuration may vary.

Media

Machine and process footage

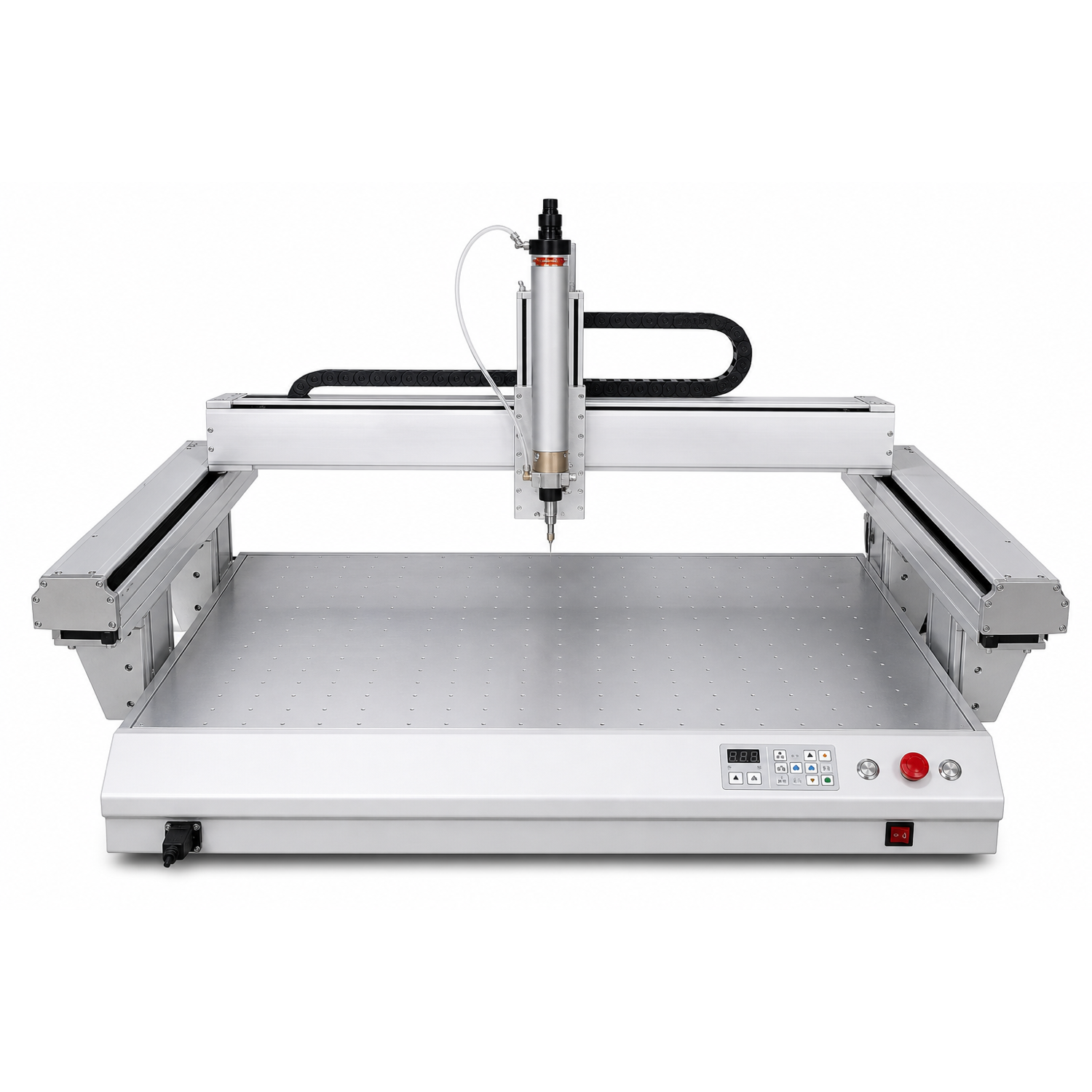

Gantry Dispensing Machine product view

Request a Configuration

Is this system suitable for your process?

Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
