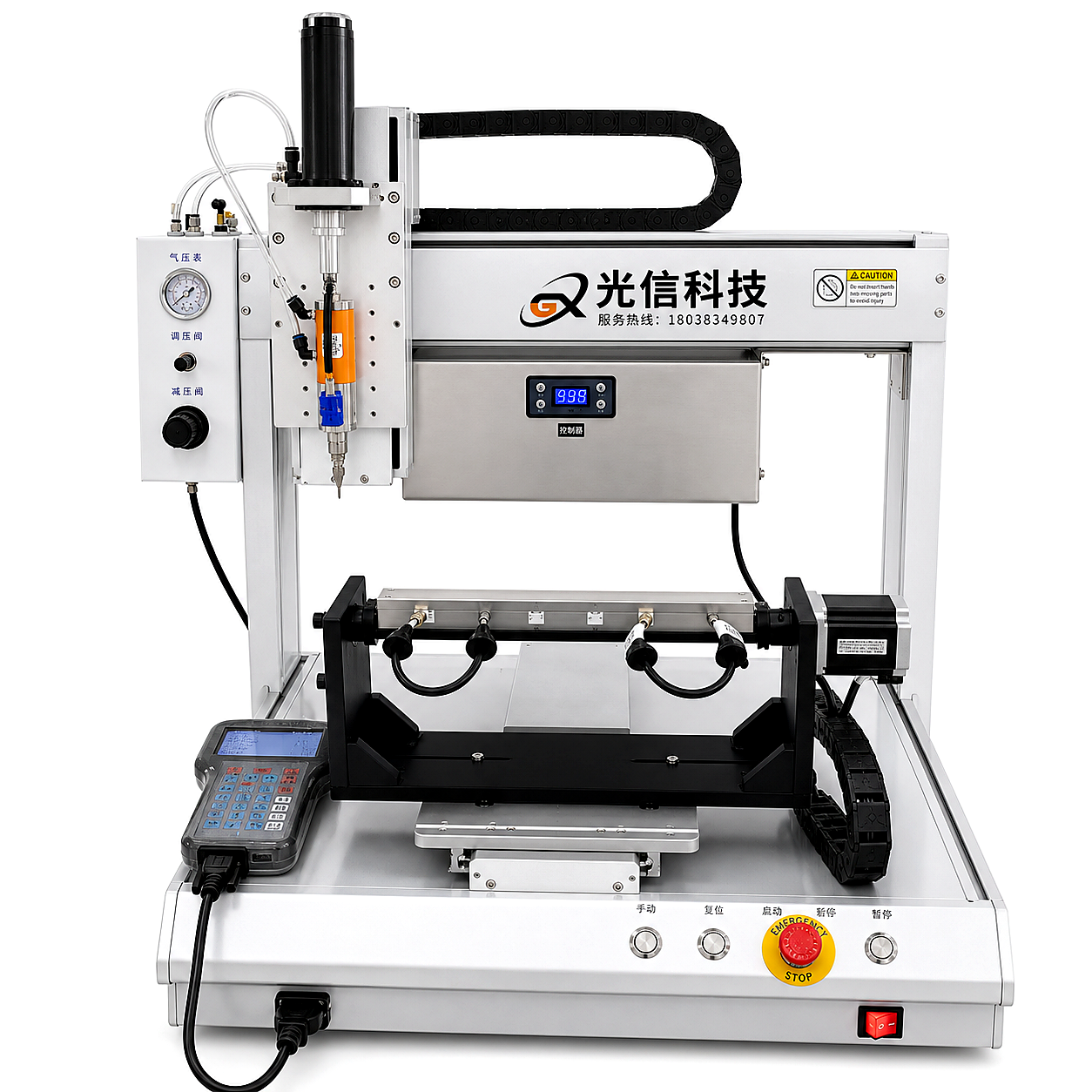

GX-DJ-441
UV Wire Dispensing Machine
Programmable UV adhesive dispensing for wire, cable and connector assemblies.
The GX-DJ-441 is configured for controlled UV adhesive dispensing on wire and cable assemblies. A programmable dispensing head and rotary fixture support repeatable application around connectors and cylindrical parts.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-DJ-441 is configured for controlled UV adhesive dispensing on wire and cable assemblies. A programmable dispensing head and rotary fixture support repeatable application around connectors and cylindrical parts.
Typical Applications
Wire sealingCable connectorsUV adhesive bondingStrain relief
Key Specifications
- Travel range
- X400 × Y400 × Z100 mm
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 620 × 700 × 650 mm
- Weight
- 55 kg
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
