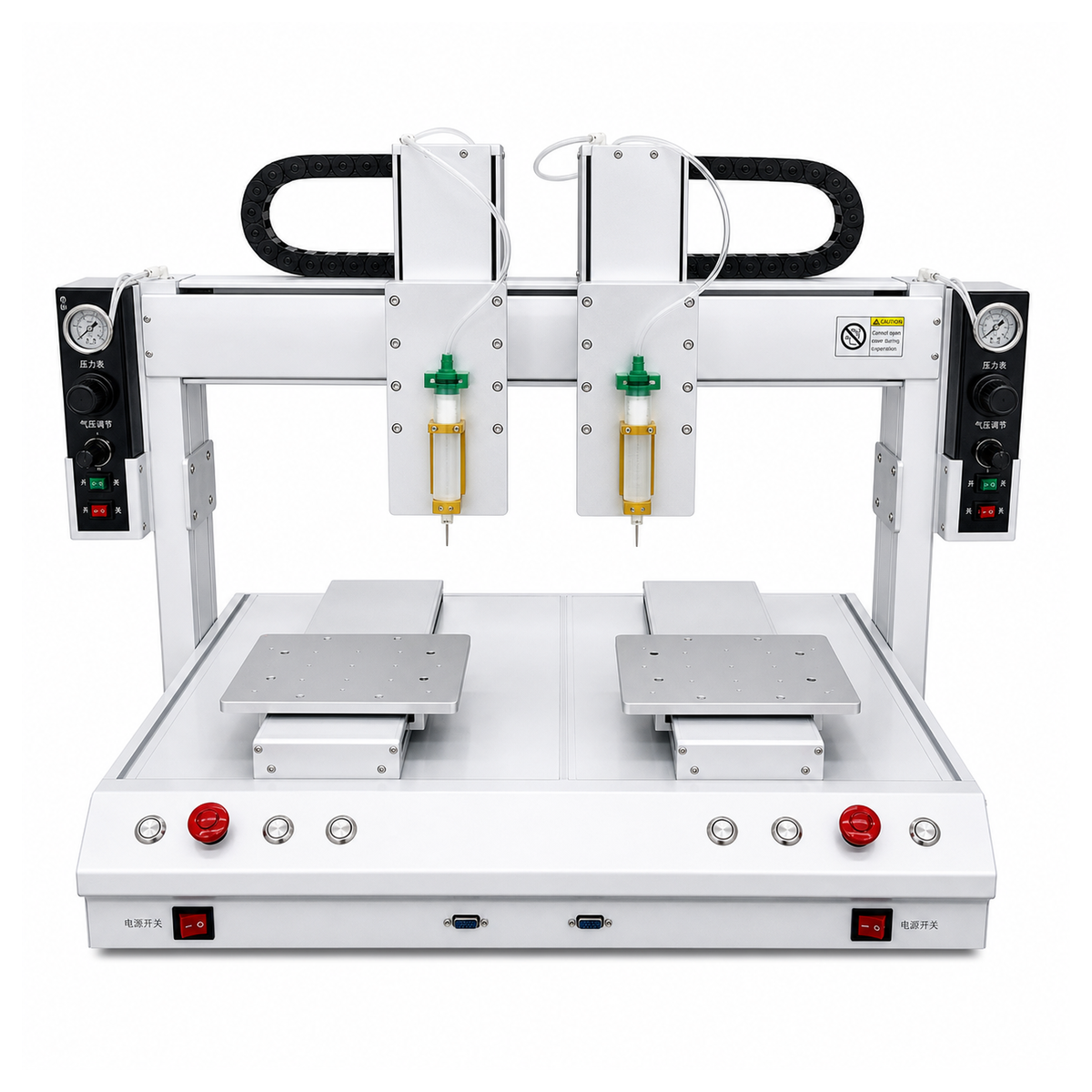

GX-DJ-5331
Dual-Head Dual-Station Dispenser
Two independent dispensing heads and workstations for parallel or alternating production.
The GX-DJ-5331 combines two programmable dispensing heads with two independent workstations. It supports parallel production, alternating loading and separate fixtures for higher throughput in bonding and sealing applications.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-DJ-5331 combines two programmable dispensing heads with two independent workstations. It supports parallel production, alternating loading and separate fixtures for higher throughput in bonding and sealing applications.
Typical Applications
Parallel dispensingAdhesive bondingSealingDual-fixture production
Key Specifications
- Travel range
- X500 × Y1 300 × Y2 300 × Z100 mm
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 720 × 600 × 650 mm
- Weight
- 200 kg
Media
Machine and process footage
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
