GX-DJ-661

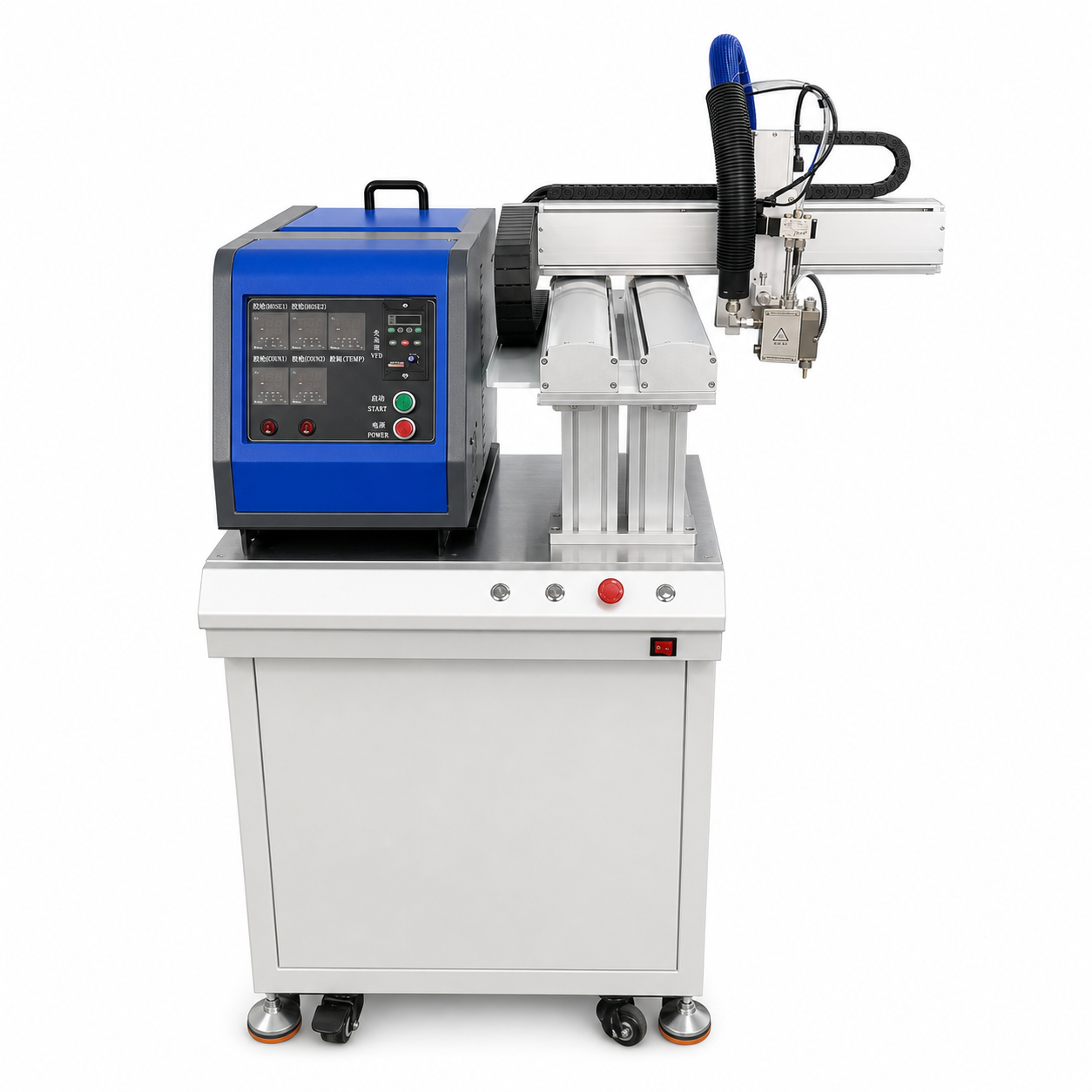

Cantilever Hot-Melt Dispenser
Open cantilever robot with a heated hot-melt adhesive supply system.
The GX-DJ-661 integrates a programmable cantilever robot with a heated hot-melt adhesive supply. Its open structure provides flexible loading and supports customized fixtures for bonding, sealing and assembly processes.
Factory direct Configurable process Global support
Equipment Details
Designed for repeatable production
The GX-DJ-661 integrates a programmable cantilever robot with a heated hot-melt adhesive supply. Its open structure provides flexible loading and supports customized fixtures for bonding, sealing and assembly processes.
Typical Applications
Hot-melt bondingPackaging assemblyProduct sealingLarge fixtures
Key Specifications
- Travel range
- X600 × Y600 × Z100 mm
- Speed
- X/Y 0–500 mm/s; Z 0–100 mm/s
- Positioning accuracy
- ±0.02 mm
- Repeatability
- ±0.02 mm
- Drive system
- Stepper motor + timing belt
- Control
- Handheld programmer
- Program files
- 999
- Air pressure
- 0.1–0.6 MP (catalogue notation)
- Payload
- 10 kg
- Power supply
- AC 110/220 V, 50/60 Hz
- Dimensions
- 820 × 880 × 640 mm
- Weight
- 200 kg
Media
Machine and process footage
Request a Configuration
Is this system suitable for your process?
Send the workpiece, material, dispensing or assembly requirements, and target cycle time. We will recommend the right machine configuration.
